Open source SNMP tooling

A desktop SNMP browser, MIB editor and alert router.

One native binary for Windows, macOS and Linux. Walk devices over v1, v2c or v3, read conceptual tables as tables, edit MIBs with diagnostics that name the line, and route what matters to syslog, a webhook or your inbox.

MIT licensed Windows · macOS · Linux SNMP v1 / v2c / v3 No agent, no account

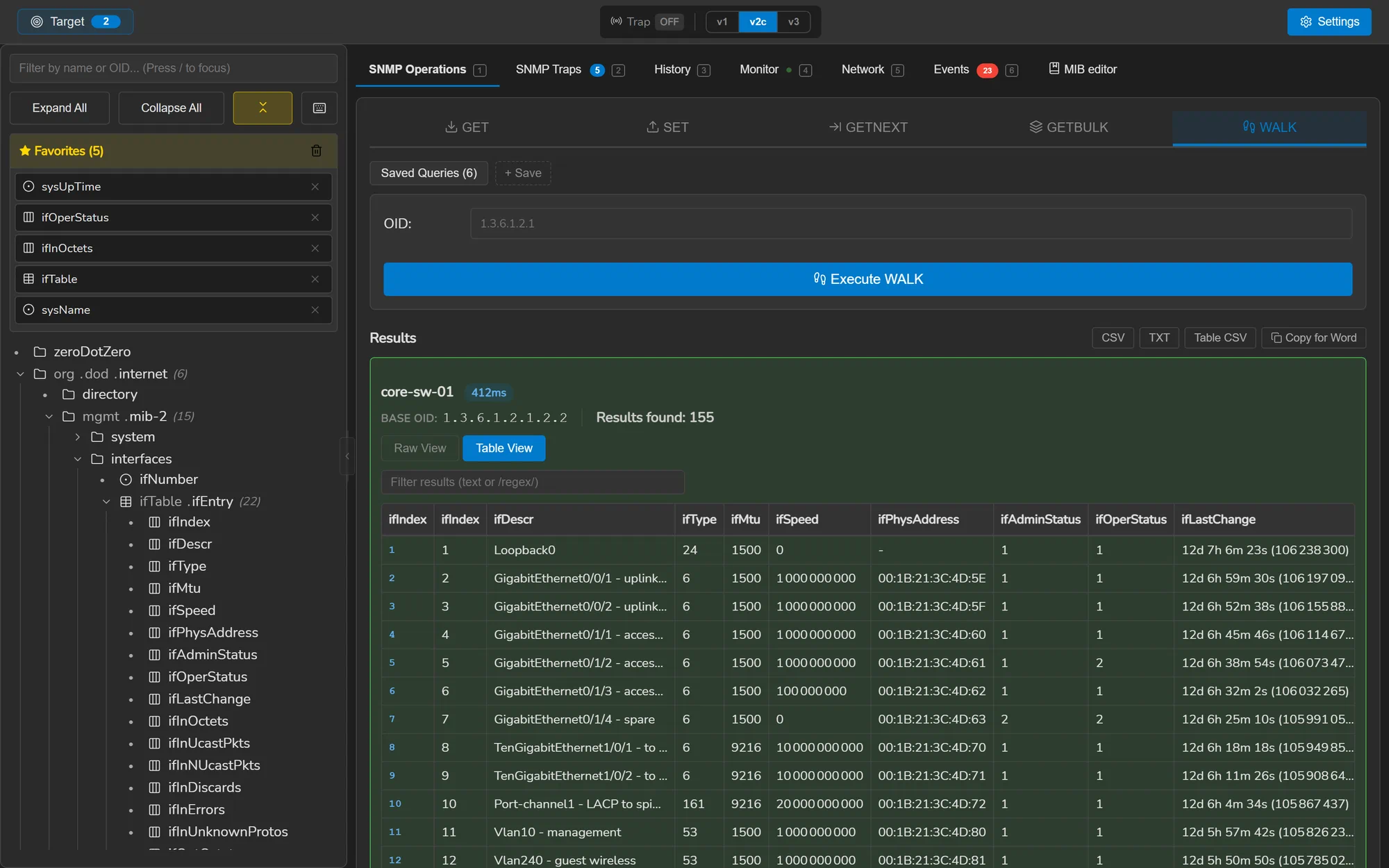

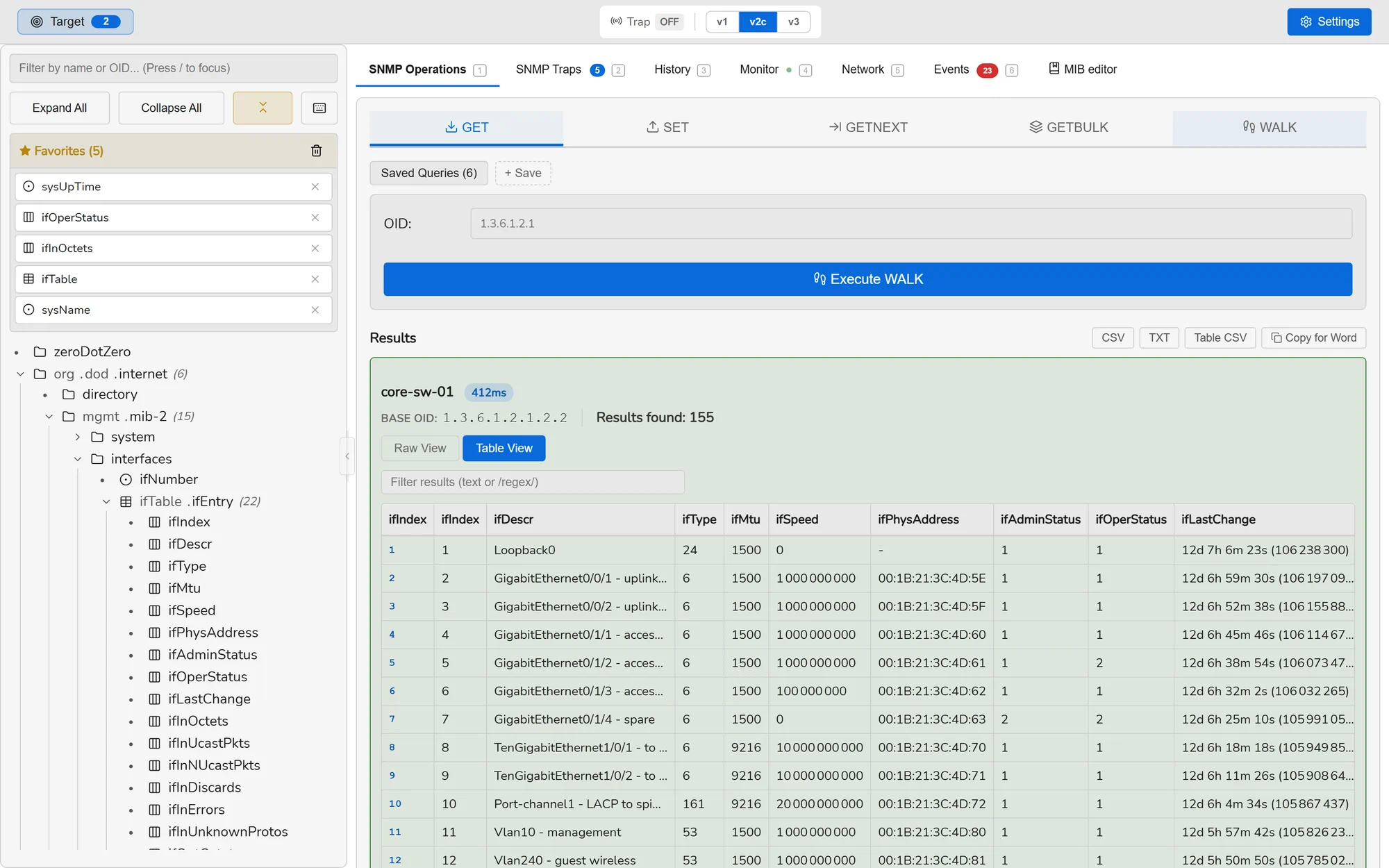

The SnmpLens Operations tab: a MIB tree on the left, a walk result rendered as a sortable table on the right. The SnmpLens Operations tab: a MIB tree on the left, a walk result rendered as a sortable table on the right.
A walk of ifTable, pivoted into columns and split by INDEX.

What it is

The whole loop, in one binary.

Find the OID, read it from the device, work out whether the number is a problem, tell somebody. Four jobs, four screens — no collector to deploy, no server to run, and no account to make.

  1. Find it

    The MIB tree, searchable across name, OID, description and syntax.

  2. Read it

    A walk of ifTable, pivoted into columns and split by INDEX.

  3. Judge it

    Polled on a schedule, charted, and marked when it leaves its range.

  4. Tell somebody

    Syslog, a webhook or email — with what the relay said when it refused.

The backend is Go, the interface is Svelte, and Wails compiles them into one native executable with no runtime to install. Its state — the MIBs you added and the history it recorded — lives in a directory you own, as files you can read. The only server SnmpLens contacts on its own is GitHub, to ask whether a newer release exists.

Capabilities

Seven workspaces

Each tab is a job, and the keyboard shortcut is in brackets.

Operations Ctrl 1

GET, SET, GETNEXT, GETBULK and WALK across many targets at once. Results arrive as a flat list or as a real table — pivoted by column and split by INDEX, following RFC 2578 §7.7, so tcpConnTable reads as four index fields rather than one opaque sub-OID. Rows can be created and deleted where the MIB defines a RowStatus.

Read about SNMP operations →

Traps Ctrl 2

Receive v1, v2c and v3 traps on any port, with the trap OID resolved through your MIBs. Send traps to test a receiver, or acknowledged INFORMs — refused on v1 rather than quietly downgraded, because RFC 1157 has no such PDU.

Read about traps and informs →

History Ctrl 3

Every operation is kept with its results, so you can diff two walks side by side and see what changed on a device between Tuesday and now. Frequent queries can be saved and re-run.

Read about comparing two walks →

Monitor Ctrl 4

Poll OIDs on a schedule and chart them as raw values, deltas, per-second rates or latency. Counter wraps are corrected and rates derived from the time that actually elapsed. The clock lives in the Go backend, so closing the window does not stop the session.

Read about monitoring and thresholds →

Discovery Ctrl 5

Scan a CIDR range for devices that answer SNMP, then ping and traceroute them. Both are pure Go and need no elevated privileges. IPv6 throughout, including link-local addresses with a zone.

Read about discovery and network tools →

Events Ctrl 6

One journal for everything worth remembering: traps received, thresholds opened and resolved, devices that stopped answering, deliveries that failed. Filterable, exportable, and the source for every alert that gets routed.

Read about the event journal →

MIB editor Ctrl 7

Edit the MIBs in your own directory with syntax highlighting, live validation as you type, and a semantic pass that catches what loading does not — unknown types, duplicate OIDs, undefined INDEX objects. Standard MIBs are backed up before they are overwritten and can be restored.

Read about the MIB editor →

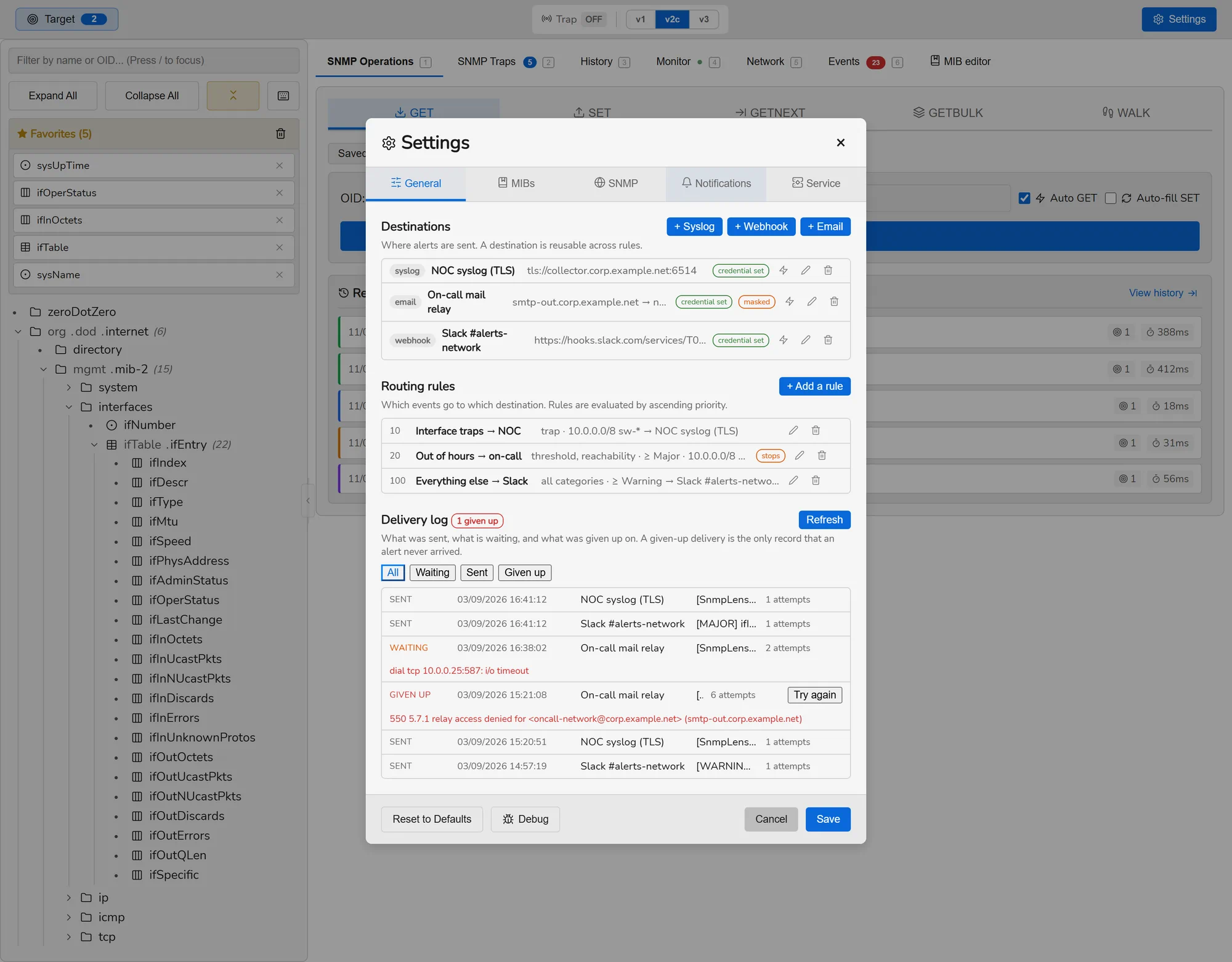

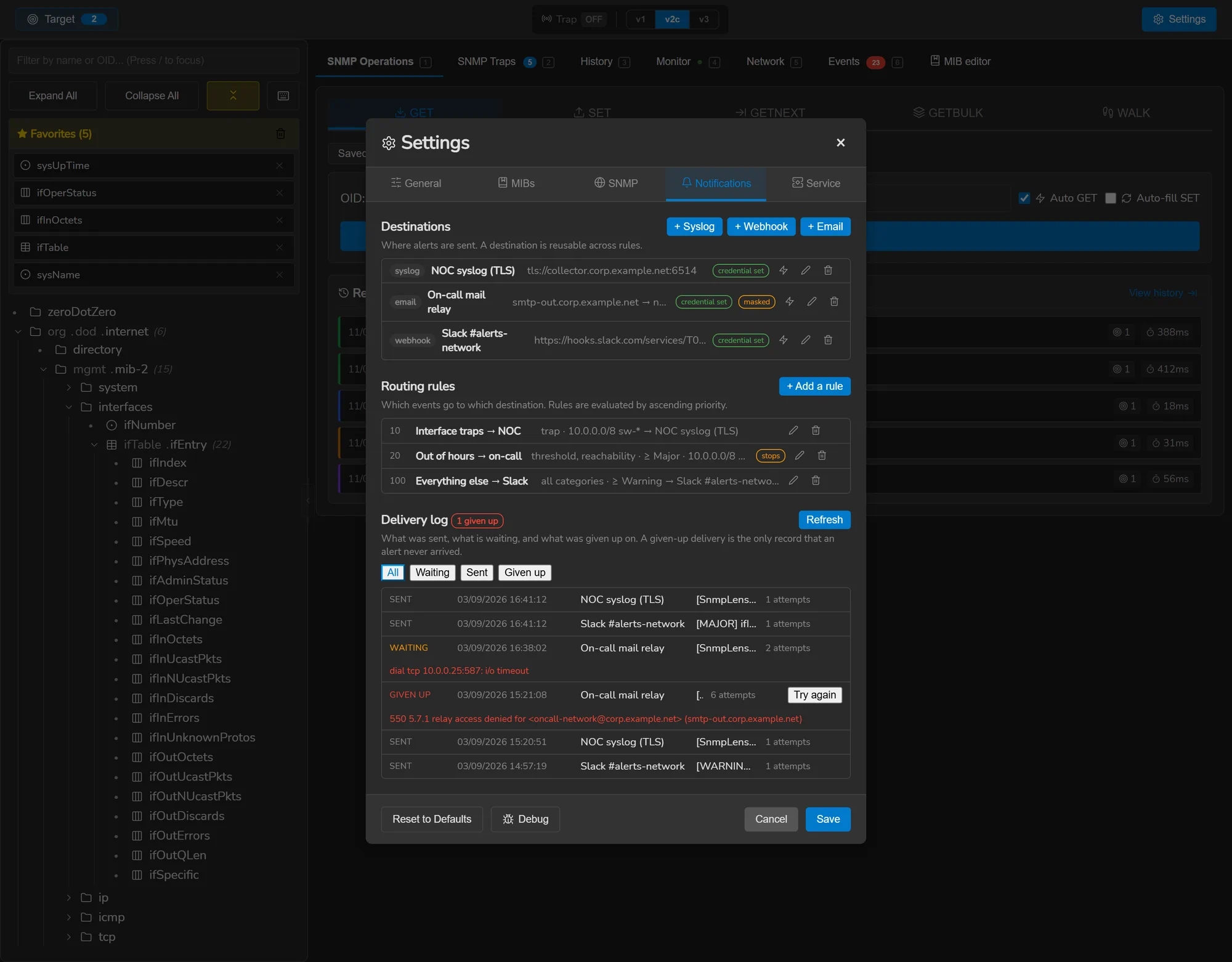

Alert routing

Rules match events by category, severity, source, OID prefix or quiet hours, and send them to syslog (UDP, TCP or TLS per RFC 5425), a webhook, or email. Delivery goes through a durable outbox with retries, so an alert survives a relay being down and a window being closed.

Read about alert routing →

Privacy

Anonymous Mode replaces every address, credential and hostname on screen with a stable alias, so a screenshot or a screen-share is safe. It is deliberately non-persistent: it is always off at startup, so it can never hide something you needed to see.

Read about Anonymous Mode →

In motion

Four things a still cannot say

155 varbinds arrive flat, then pivot into columns split by INDEX.
155 varbinds arrive flat, then pivot into columns split by INDEX.
Five series polled on a schedule — one climbs past 80% and is marked out of range.
Five series polled on a schedule — one climbs past 80% and is marked out of range.
Every address replaced in place, consistently, on one keystroke.
Every address replaced in place, consistently, on one keystroke.
A MIB opens, highlights, and the analysis arrives under it.
A MIB opens, highlights, and the analysis arrives under it.

Try it

The whole application, in a browser tab.

Not a video and not a mock-up — the same Svelte interface the desktop build ships, with the SNMP backend replaced by fixtures. Walk a device, open a MIB, watch a chart, break a MIB and read the diagnostics. Nothing to install and nothing to configure.

Every device in it is fictional and nothing leaves your browser. The parts that ask the operating system for something a web page cannot have — installing a service, starting with your session, writing a MIB to disk, sending a real test notification — say so rather than pretending to have done it.

Under it

The parts that are easy to get wrong

A tool is judged by what it does when things are not fine.

A MIB that will not load tells you why

The underlying library answers “Could not load module at X” for a missing file, a PDF, a syntax error on line 412 and an unsatisfiable IMPORTS alike. SnmpLens recovers the real message and reports a stage — read, content, parse, imports, build, semantic — with the position, an excerpt with a caret, and the modules that could not be satisfied along with the symbols each was needed for.

It recognises the files people download by mistake: an HTML error page, a PDF, a zip, a UTF-16 file. All four otherwise arrive as the same sentence.

Credentials are not kept beside the data

Community strings and v3 passphrases are sealed with a key held by the operating system — DPAPI on Windows, the Keychain on macOS, a 0600 file on Linux — and never written next to the database. The settings screen names the backend actually in use rather than saying “encrypted”, because those three protect against different things.

Sealing that fails never falls back to writing plaintext, and never overwrites good ciphertext with a half-sealed object.

Updates are signed, not just downloaded

Every release ships a SHA-256 manifest and an Ed25519 signature over it. The application verifies the signature against a key compiled into the binary, then checks the asset against the now-authenticated manifest — the same model a Linux package repository uses. A build whose signature is missing refuses the update rather than applying it.

An alert that fails leaves a record

Deliveries are queued in a durable outbox and retried with backoff. Whether a failure is retried is decided by the protocol reply code — 4xx transient and 5xx permanent for SMTP, per RFC 5321 — never by searching the text a receiver wrote. A delivery finally given up on is kept and listed, because it is the only record that a notification never arrived.

Install

Get it running

Windows

Installer, or a portable executable with nothing to install.

macOS

Universal — Apple Silicon and Intel in one image.

Linux

Debian package, or a tarball for everyone else.

Every asset, its checksum and the signature are on the download page, with instructions for verifying them. Building from source takes three commands — see contributing.

Stars
0000
Forks
000
Open issues
00
Last commit
Loading
Latest release
v0.0.0

More of it

Screenshots

The SnmpLens MIB tree browser with a search field and a node detail panel. The SnmpLens MIB tree browser with a search field and a node detail panel.
The MIB tree, searchable across name, OID, description and syntax.

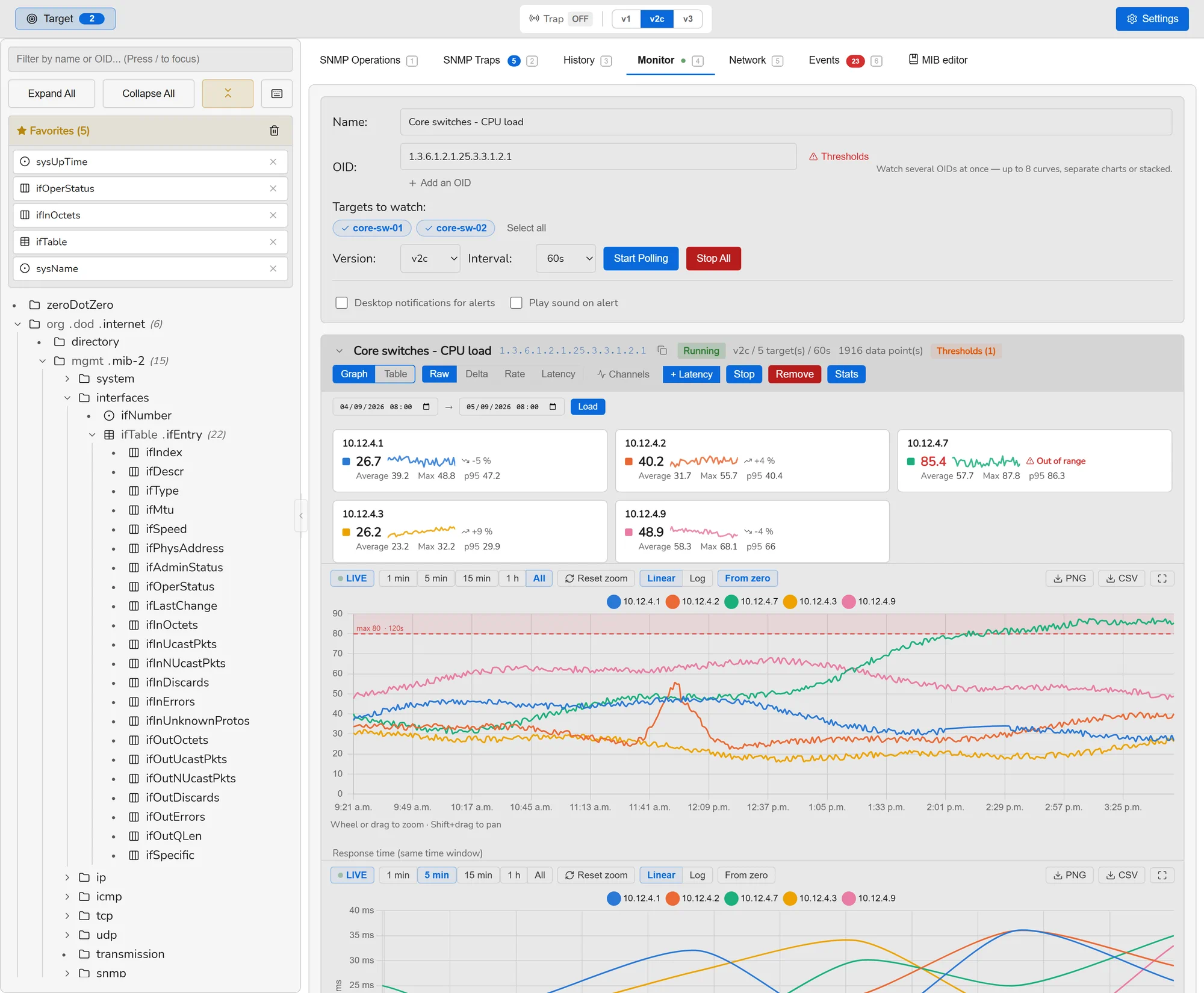

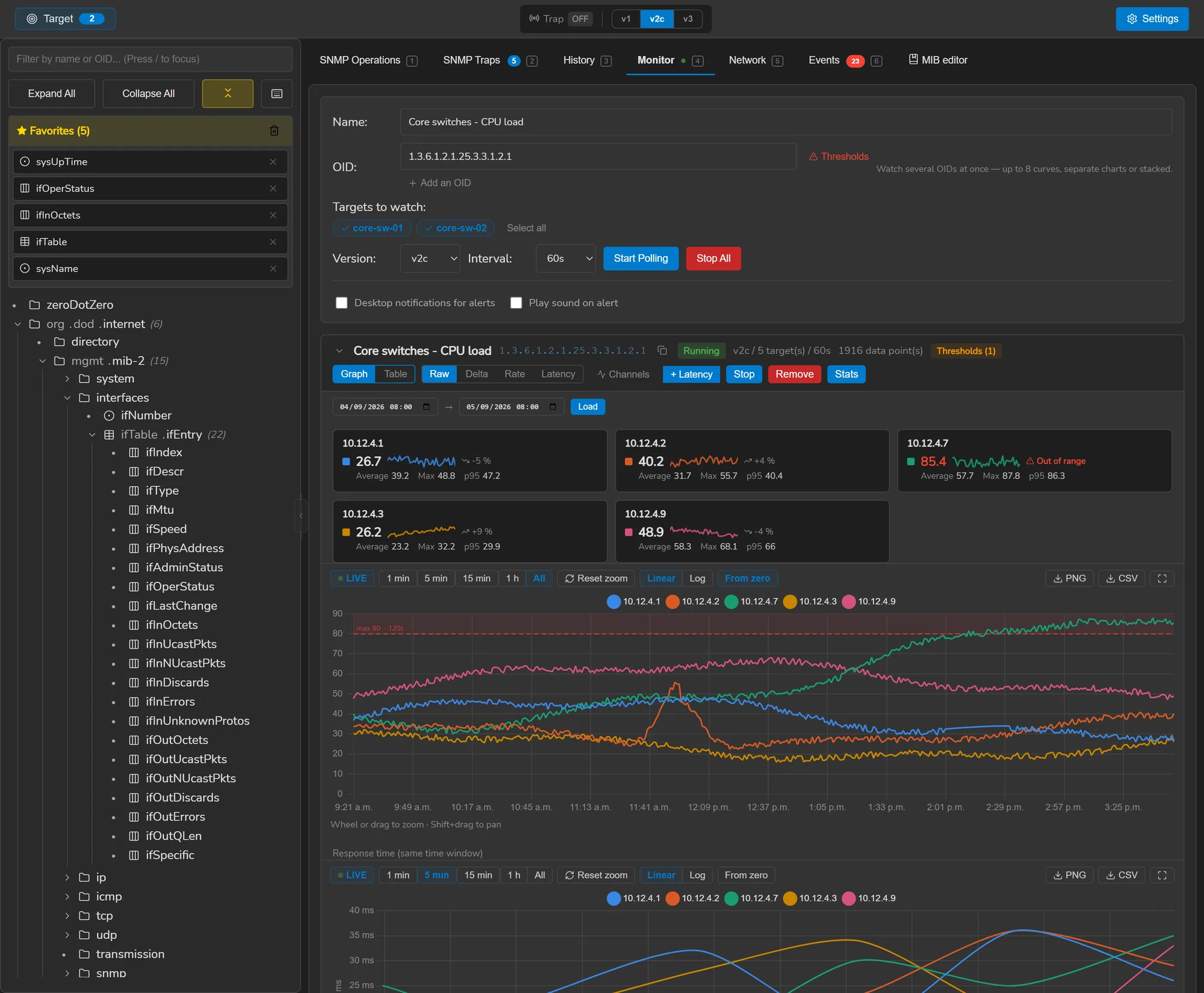

Monitoring charts plotting several OIDs over time. Monitoring charts plotting several OIDs over time.
Polling sessions charted as values, deltas, rates or latency.

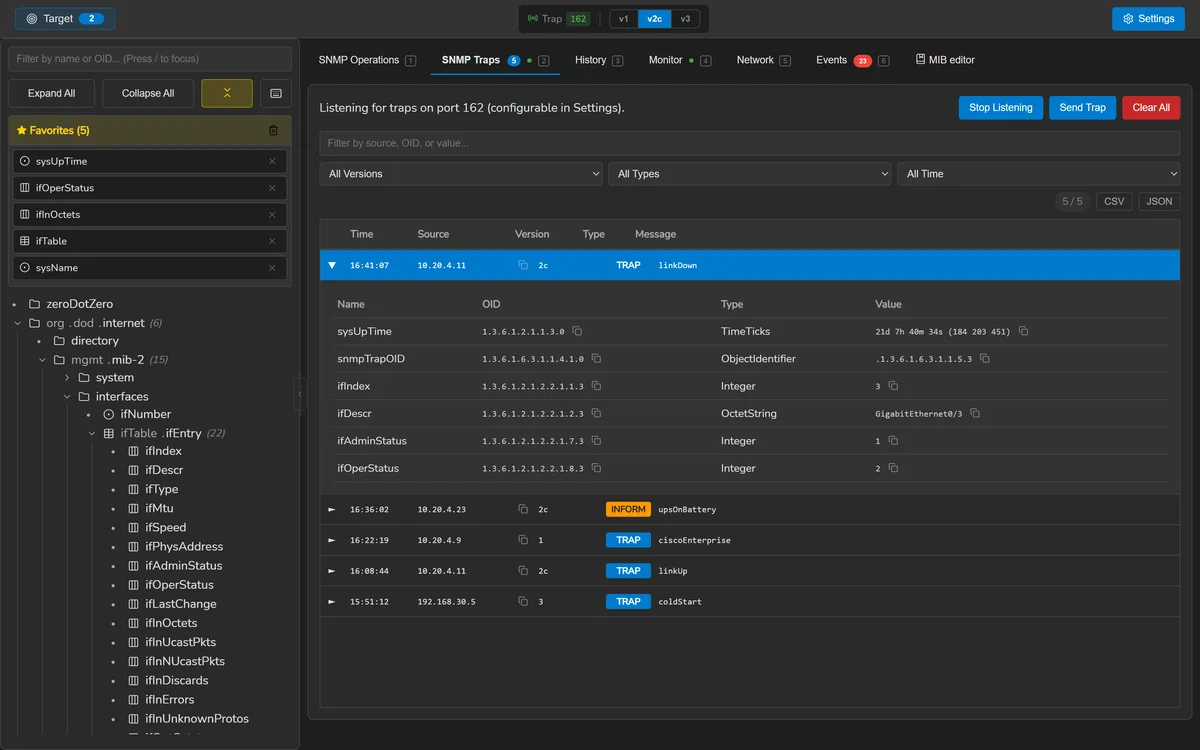

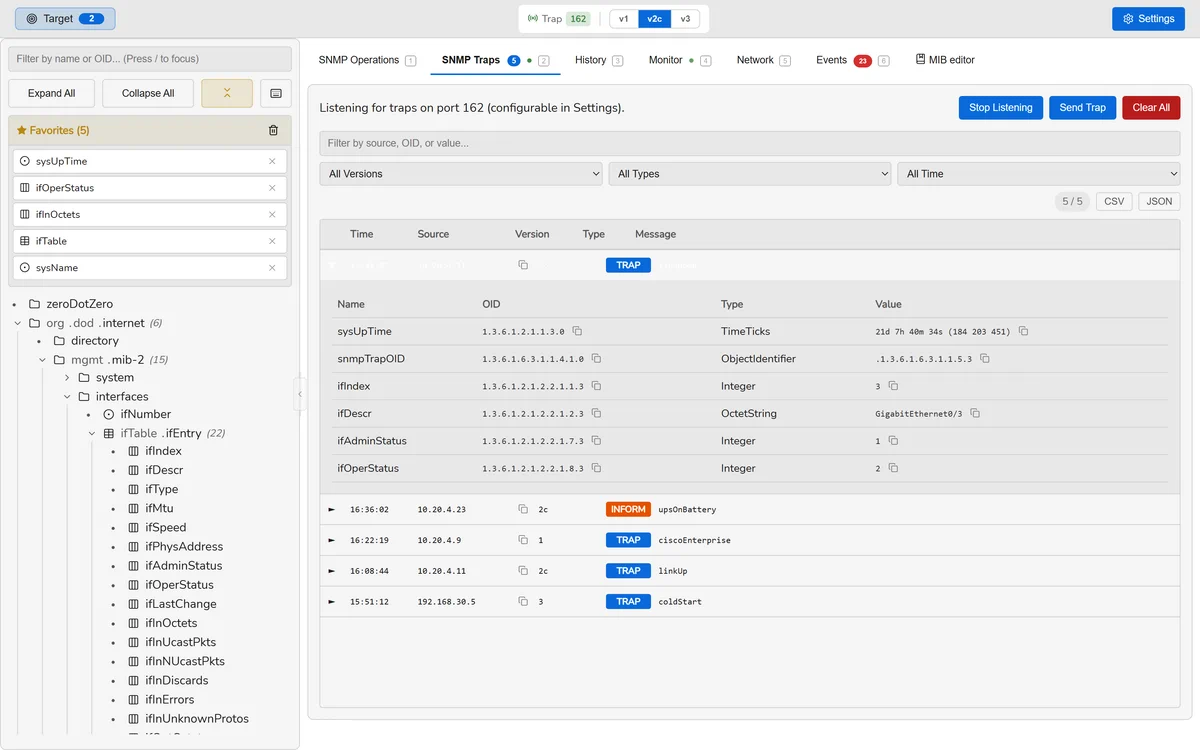

A SnmpLens list of received SNMP traps with their varbinds. A SnmpLens list of received SNMP traps with their varbinds.
Received traps, with the trap OID resolved through your MIBs.

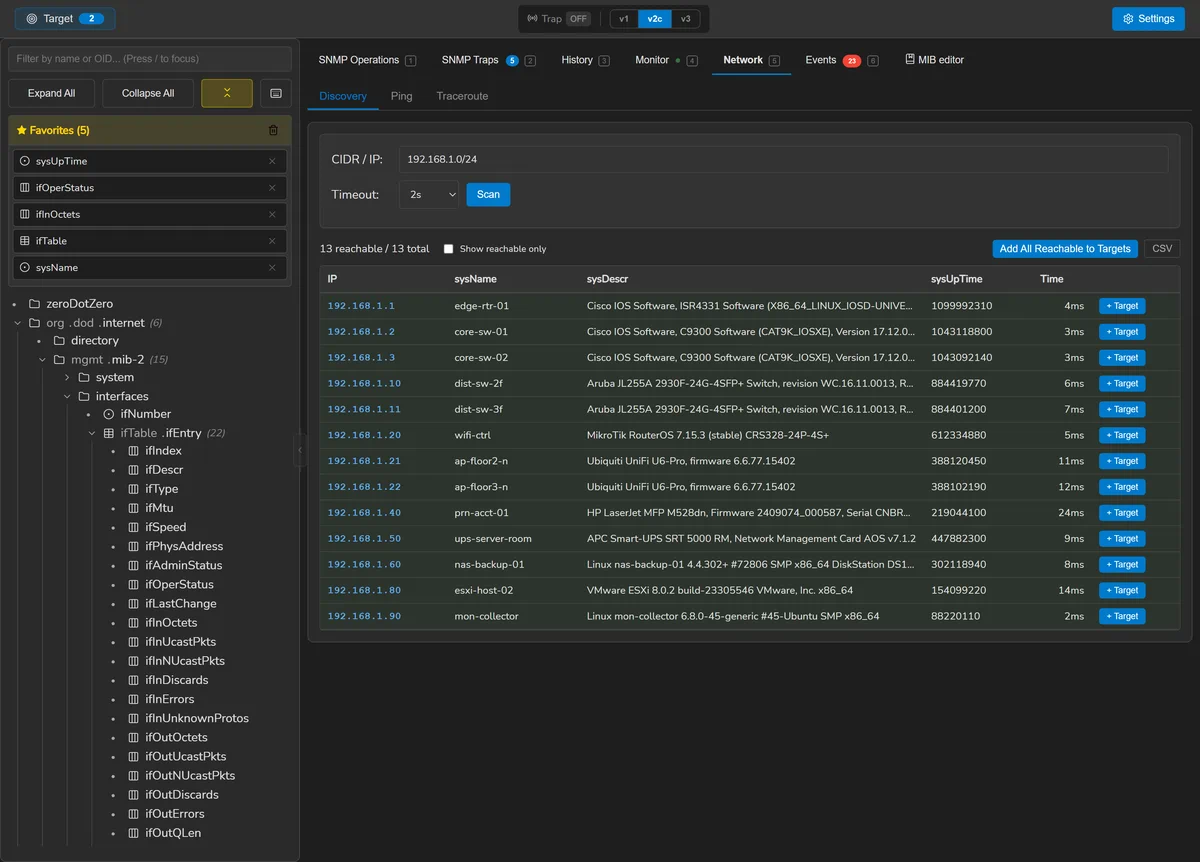

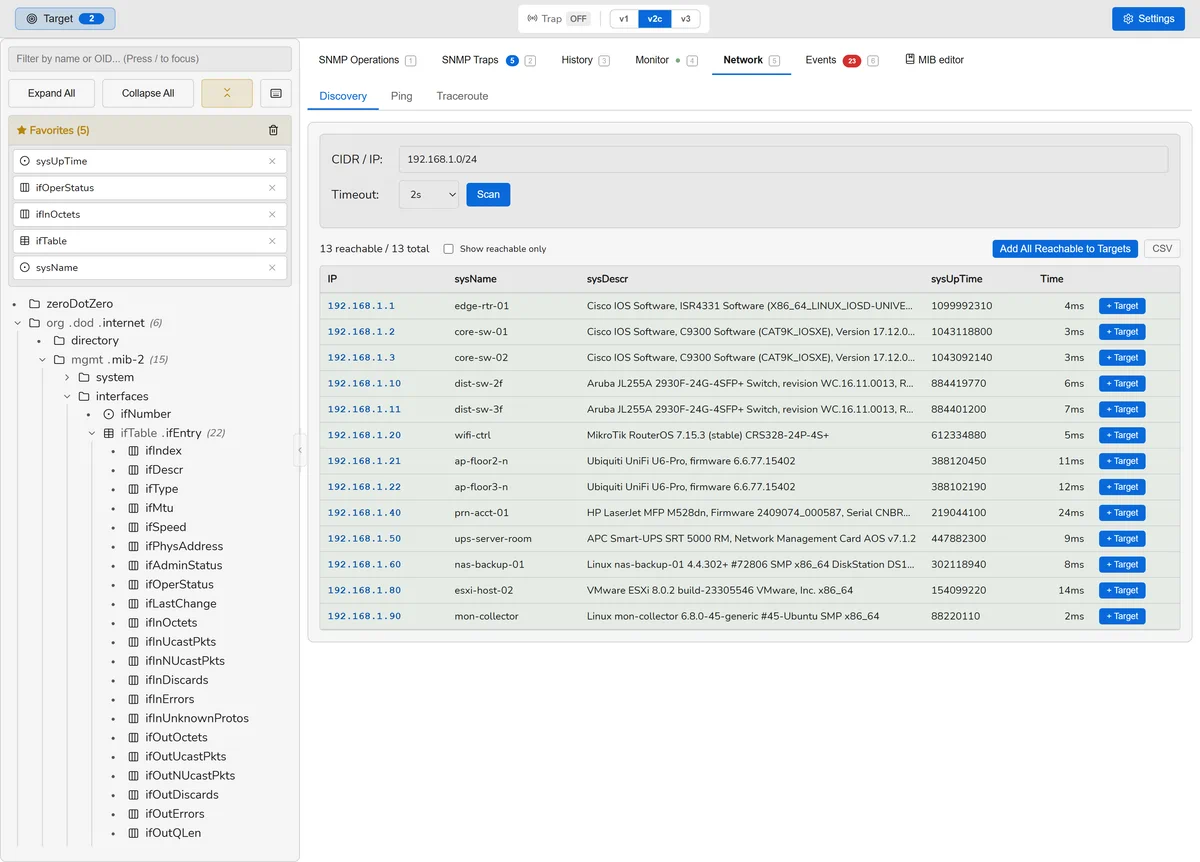

A SnmpLens CIDR scan listing devices that answered, with ping and traceroute. A SnmpLens CIDR scan listing devices that answered, with ping and traceroute.
A CIDR sweep, then ping and traceroute without elevated privileges.

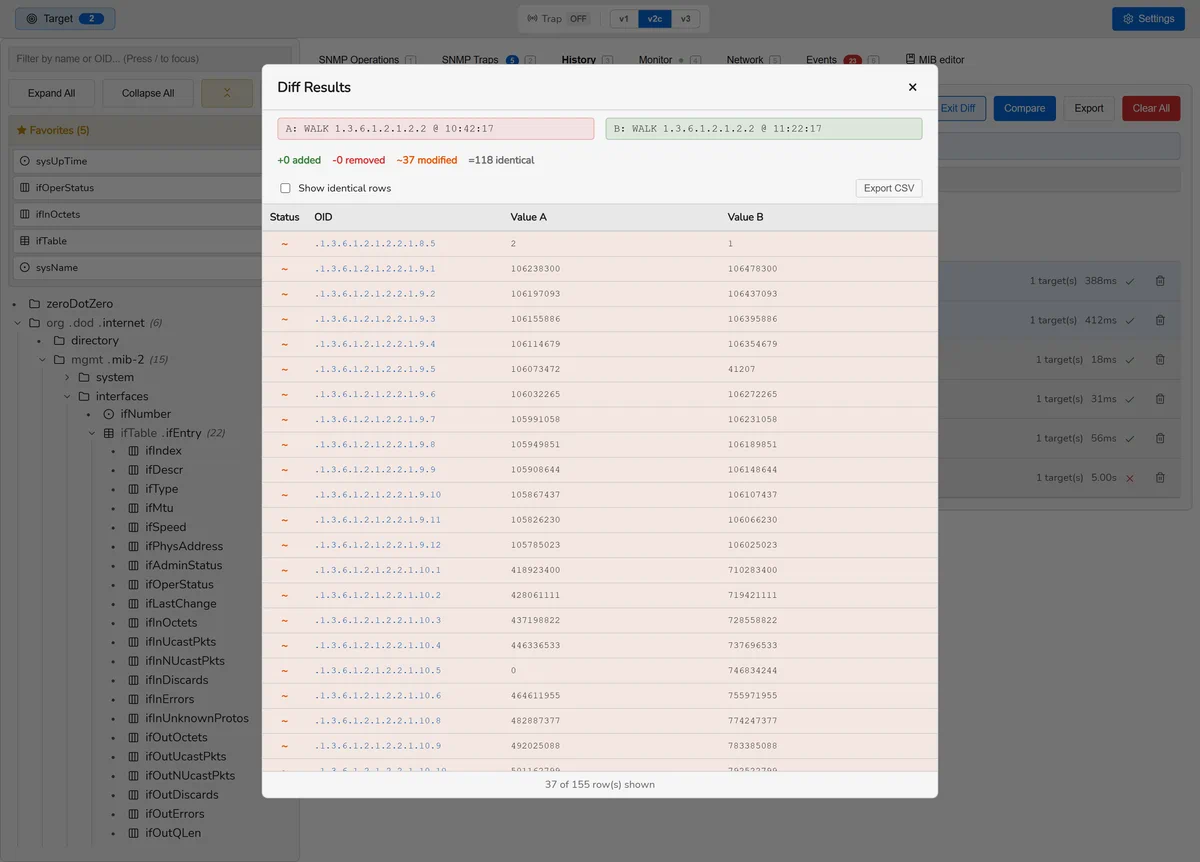

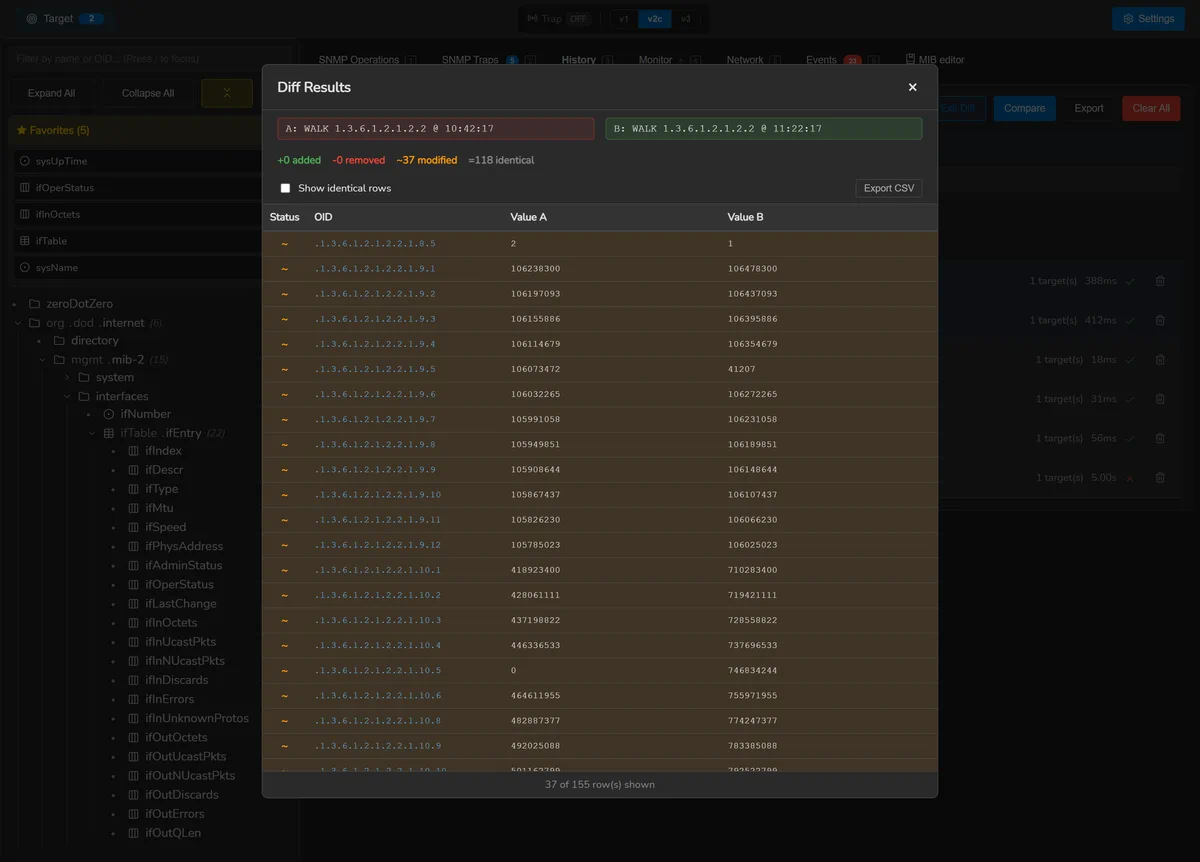

Two query results shown side by side with the differences highlighted. Two query results shown side by side with the differences highlighted.
Two walks of the same device, diffed.

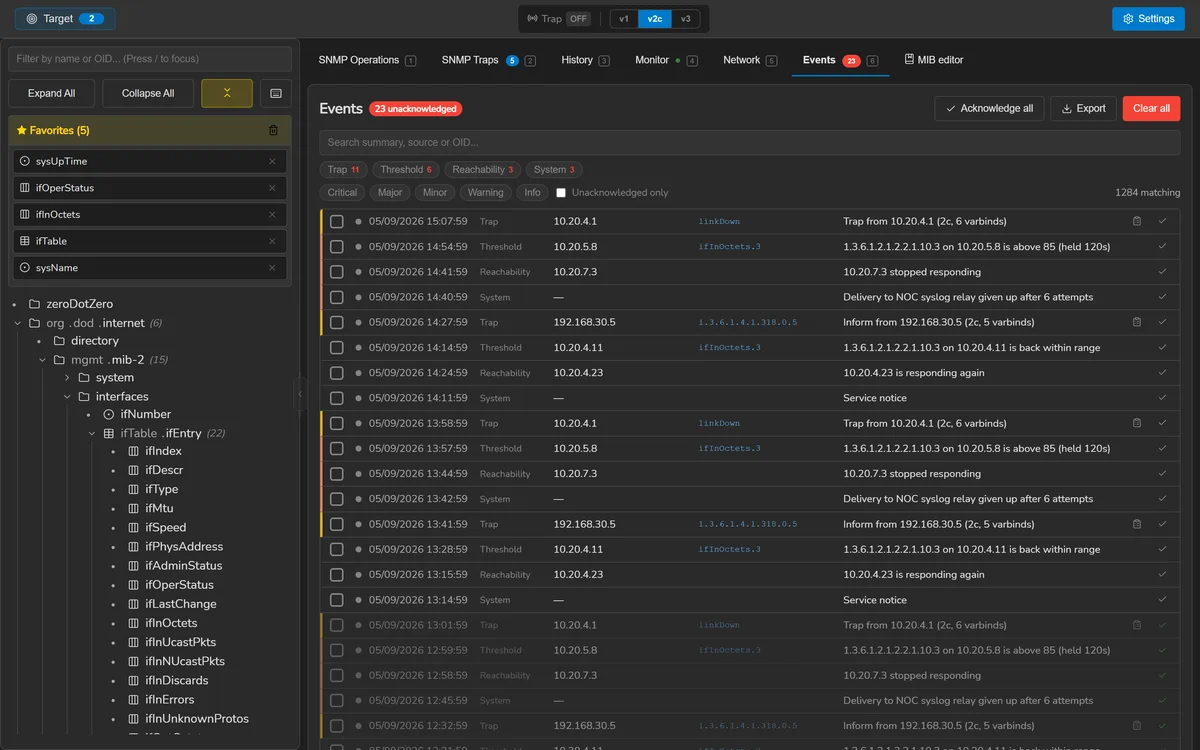

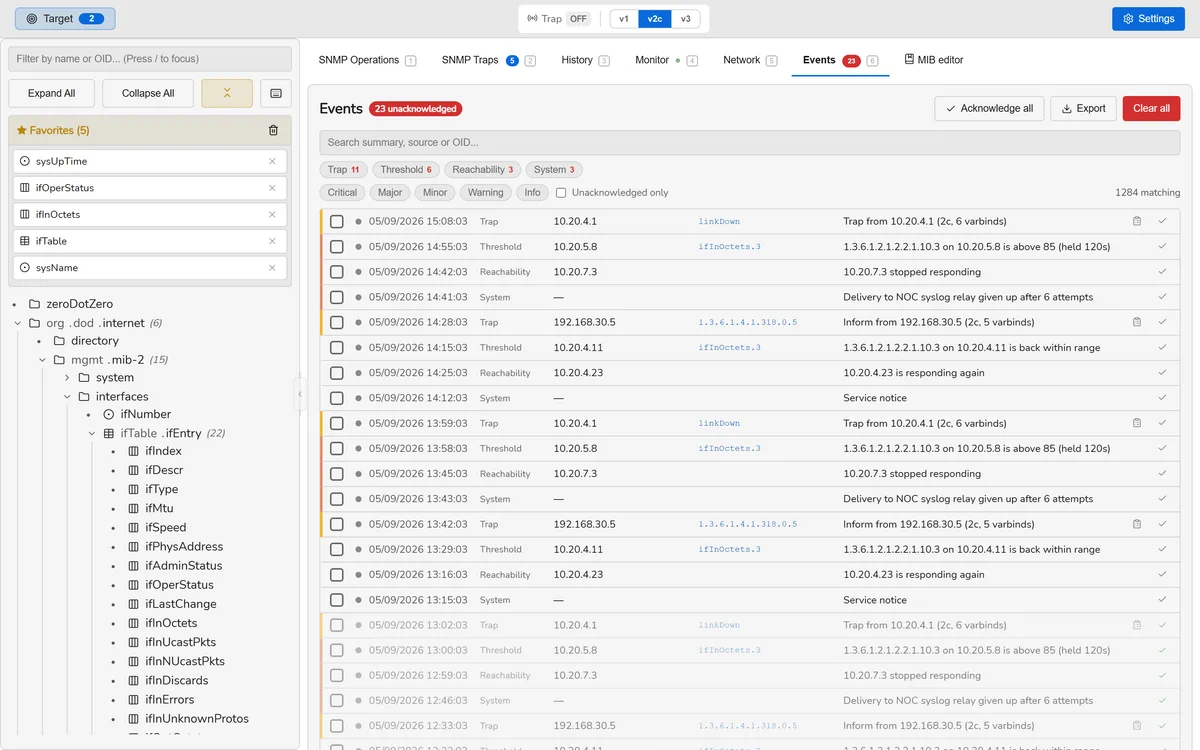

The SnmpLens event journal listing traps, thresholds opened and resolved, reachability changes and a delivery that was given up on. The SnmpLens event journal listing traps, thresholds opened and resolved, reachability changes and a delivery that was given up on.
One journal for everything — including the alerts that never arrived.

Every image here is generated from the real interface by node tools/screenshots.mjs — the same components and stylesheet the application ships, with the backend replaced by fixtures — so they cannot show a layout the application does not actually produce, and they are regenerated rather than retaken. The changelog is the authority on what shipped when.
